IRIO S

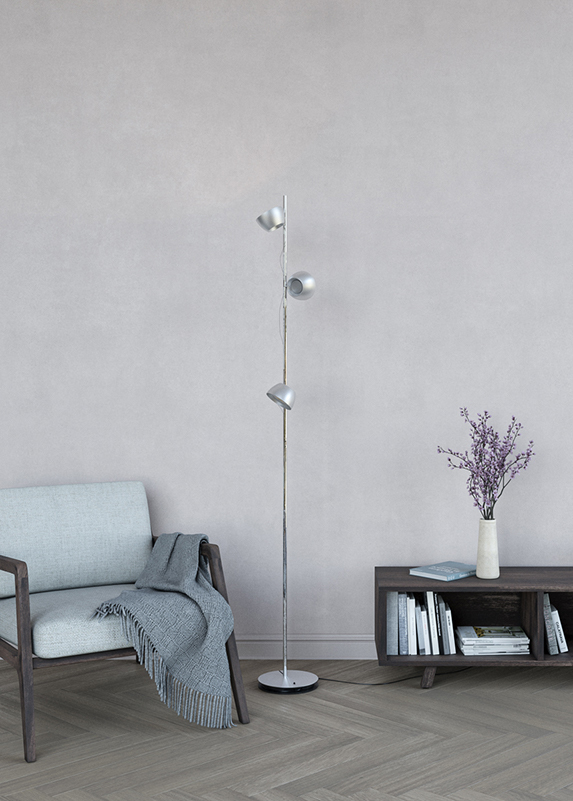

The IRIO floor luminaire combines maximum volume and variability of light with a minimalist and understated design. The three luminaire heads can be moved to any position along the linkage using the magnetic contacts (no need for tools) as well as rotated or tilted. Various light scenarios can be played out to suit the space and use.
-
More
The attachable optic offers the option to concentrate the beam angle as well, which is perfect for when the lamp is being used as a reading light. The two buttons on the linkage make it easy to operate the lamp from the sofa. Both the indirect light with two luminaire heads and the direct / reading light with one luminaire can be switched on or dimmed separately.
A main switch is integrated into the base too, so the lamp can be disconnected without using any standby power.
-
General information
Rod chromed Base black, control integrated Cable black Control system stepless dimming On request also available as CASAMBI capable luminaire.
-
Downloads
- Data sheet
-
IRIO S Datenblatt 2.292 MB PDF - Manuals
-
Mounting and operation instructions IRIO S 5.264 MB PDF Mounting and operation instructions IRIO S CASAMBI programmiert 6.842 MB PDF Mounting and operation instructions IRIO S CASAMBI ready 11.709 MB PDF M 2185 CASAMBI ready Leuchten Merkblatt Wahl des Netzwerkmodus 723.023 KB PDF - CAD Data
-
2D - IRIO S 161.764 KB ZIP 3D - IRIO S 16.005 MB ZIP - LVK / EULUM
-

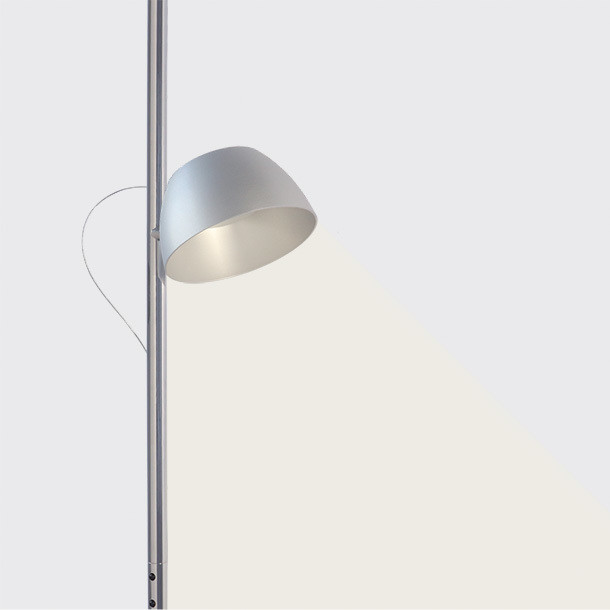

IRIO S without optic max. light distribution picture 65.639 KB PNG IRIO S with optic Molly min. light distribution picture 64.521 KB PNG
-
Technical data
- Light source 3 COB-LEDs
- Light color 2700K | 3000K | 2850-1800K
- Luminous flux 6990 lm | 8970 lm | 5520 lm
- Rated power 64 W | 64 W | 62 W
- Input voltage 220-240 V~
- Clock frequency 50-60 Hz
Highlights
Optic 40°
Optic 60°
Base with main switch and cabel depot
-
Models
IRIO S Color Version Item Price excl VAT (SRP) Data sheet IRIO S
Color Alu Version 2700 K Item 6711 000 A P Price excl VAT (SRP)
CHF1,635.00 €1,685.00 Data sheet IRIO S
Color Bronze Version 2700 K Item 6711 000 B P Price excl VAT (SRP)
CHF2,060.00 €2,125.00 Data sheet IRIO S
Color Black Version 2700 K Item 6711 000 S P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Alu Version 2700 K
CASAMBI readyItem 6711 020 A P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Bronze Version 2700 K
CASAMBI readyItem 6711 020 B P Price excl VAT (SRP)
CHF2,290.00 €2,360.00 Data sheet IRIO S
Color Black Version 2700 K
CASAMBI readyItem 6711 020 S P Price excl VAT (SRP)
CHF2,095.00 €2,160.00 Data sheet IRIO S Color Version Item Price excl VAT (SRP) Data sheet IRIO S
Color Alu Version 2850-1800 K (DTW) Item 6711 100 A P Price excl VAT (SRP)
CHF1,635.00 €1,685.00 Data sheet IRIO S
Color Bronze Version 2850-1800 K (DTW) Item 6711 100 B P Price excl VAT (SRP)
CHF2,060.00 €2,125.00 Data sheet IRIO S
Color Black Version 2850-1800 K (DTW) Item 6711 100 S P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Alu Version 2850-1800 K (DTW)
CASAMBI readyItem 6711 120 A P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Bronze Version 2850-1800 K (DTW)
CASAMBI readyItem 6711 120 B P Price excl VAT (SRP)
CHF2,290.00 €2,360.00 Data sheet IRIO S
Color Black Version 2850-1800 K (DTW)
CASAMBI readyItem 6711 120 S P Price excl VAT (SRP)
CHF2,095.00 €2,160.00 Data sheet IRIO S Color Version Item Price excl VAT (SRP) Data sheet IRIO S
Color Alu Version 3000 K Item 6711 300 A P Price excl VAT (SRP)
CHF1,635.00 €1,685.00 Data sheet IRIO S
Color Bronze Version 3000 K Item 6711 300 B P Price excl VAT (SRP)
CHF2,060.00 €2,125.00 Data sheet IRIO S
Color Black Version 3000 K Item 6711 300 S P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Alu Version 3000 K
CASAMBI readyItem 6711 320 A P Price excl VAT (SRP)
CHF1,865.00 €1,925.00 Data sheet IRIO S
Color Bronze Version 3000 K
CASAMBI readyItem 6711 320 B P Price excl VAT (SRP)
CHF2,290.00 €2,360.00 Data sheet IRIO S
Color Black Version 3000 K
CASAMBI readyItem 6711 320 S P Price excl VAT (SRP)
CHF2,095.00 €2,160.00 Data sheet
