FEZ S

Name: Baltensweiler AG
Price range: $

FEZ is the name of a city in Morocco, where once a headgear in shape of a truncated cone was created. FEZ is also the name of a luminaire model from BALTENSWEILER.

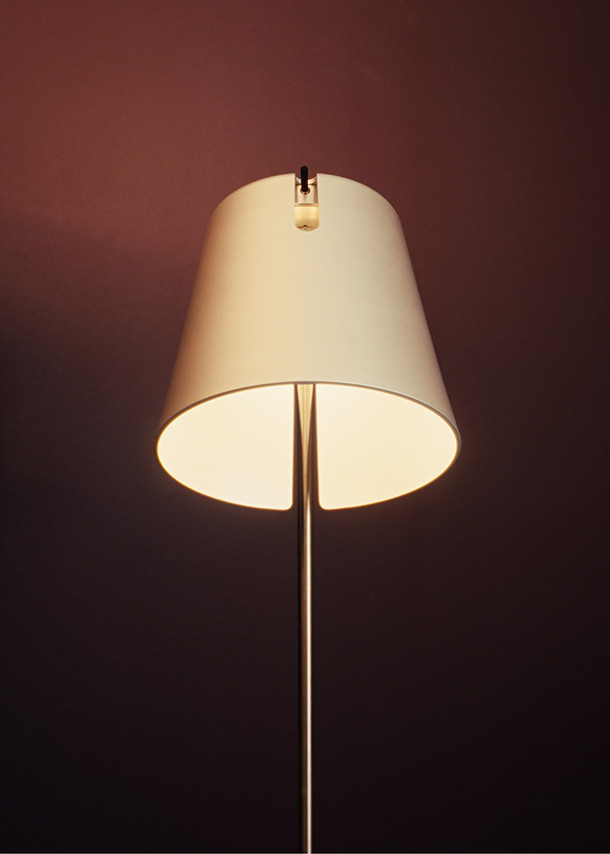

The simplicity of form and the high demands on function are the most important aspects of the FEZ. With its high lighting efficiency, it is suitable for the home, office and contract sector. The luminaire head made of aluminium is characteristic for FEZ, which simultaneously serves as a heat sink and glare shield. Two powerful LEDs ensure high light efficiency; one of them is installed in the luminaire head. The light beam of this LED is directed by a lens from the conical luminaire head. The second LED, placed on the luminaire head, diffuses the light into the room and can be switched on as required.

More

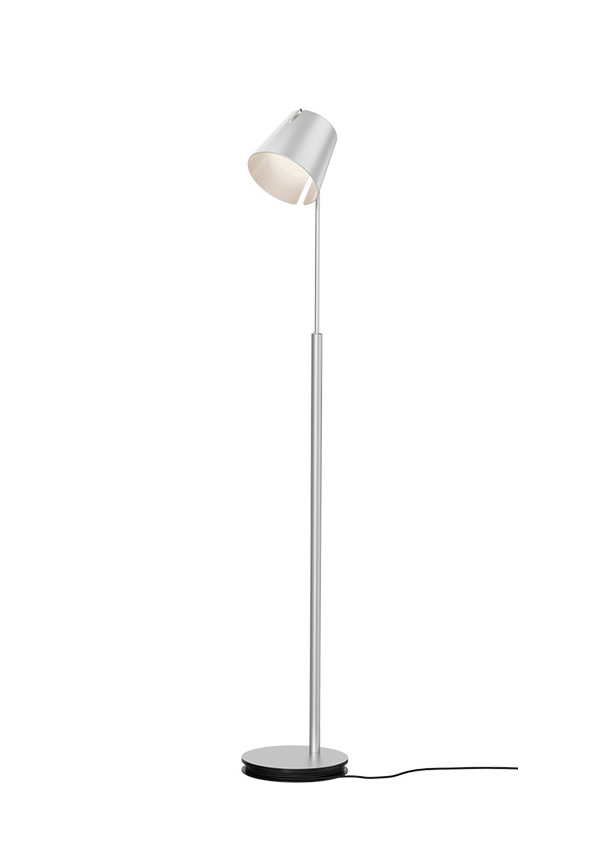

The movable and extendable floor luminaire with the adjustable luminaire head enables versatile use. The powerful luminaire provides enough light to illuminate a room. The adjustable luminaire head and the integrated dimming of the light enable the most diverse lighting moods in the room.

General information

-                                        Telescope
+chrome steel
-                                        Base
+black, control integrated
-                                        Cable
+black
-                                        Control system
+dimmable with memory

Downloads

Data sheet

FEZ Fact Sheet

2.289 MB

PDF

Manuals

M 2030 FEZ S Bedienungsanleitung	1.034 MB	PDF
M 2027 FEZ S CASAMBI ready Bedienungsanleitung	3.5 MB	PDF
M 2028 FEZ S CASAMBI programmiert Bedienungsanleitung	3.929 MB	PDF

Technical data
- Light source 2 COB-LEDs
- Light color 2700 K | 3000-1800 K
- CRI / RA 90
- Luminous flux 3090 lm | 2640 lm
- Rated power 36 W
- Input voltage 220-240 V~
- Clock frequency 50-60 Hz

Dimension

Models

FEZ S	Material		2700 K	3000-1800 K (DTW)
Alu	Luminaire head Cover Standpipe	anodised alu anodised alu anodised alu	7010 000 A P	7010 100 A P
Bronze	Luminaire head Cover Standpipe	anodised bronze anodised bronze anodised bronze	7010 000 B P	7010 100 B P
Black	Luminaire head Cover Standpipe	black black black	7010 000 S P	7010 100 S P
White	Luminaire head Cover Standpipe	white white white	7010 000 W P	7010 100 W P
